9-154.0
Series Eanos
84Series EanosLeased
9-154.0
Volume
72 m³
Description
Open freight wagons with four axles. These bogie freight wagons have a large loading space, high load limits and are equipped with a continuous top belt, a single-wing door on each side and a steel floor. They are suitable for the transport of many different goods both in bulk (coal, briquettes, ores, stones and earth) and in pieces (bales, collis, barrels, round wood or bars).
Technical parameters
- Length (m)
- 14 040
- Loading area (m²)
- 35,5
- Wagon weight (t)
- 22 500
- Axle load (t)
- 22,5
- Min. curve radius (m)
- 35
- Loading length (m)
- 12 800
- Loading width (m)
- 2 760
- Volume (m³)
- 72
- Max. wheelset diameter (mm)
- 920
- Brake
- KE-GP-A
- Brake shoe type
- K
- Bogies
- Y25 Ls(s)
- International usability
- TEN
- Loading gauge
- G1
- Speed empty (km/h)
- 120
- Speed loaded (km/h)
- 100
Load table
| Track class | Mode | Max. weight (t) |
|---|---|---|
| A | S | 41,5 |
| B1 | S | 48,0 |
| B2 | S | 49,5 |
| C | S | 59,5 |
| D2 | S | 67,0 |
| D3 | S | 67,5 |
| C4 | S | 67,5 |
Load distribution
| Type | Support length (m) | Distributed load limit (t) | Two-support limit (t) |
|---|---|---|---|
| a-a | 3 | 23 | 26 |
| b-b | 5 | 27 | 30 |
| c-c | 9 | 39 | 67,5 |
| d-d | 12 | 67,5 | 30 |

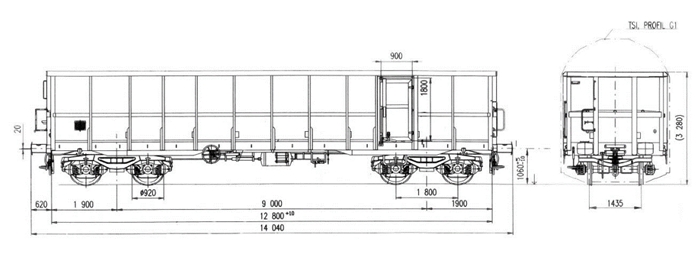

Type drawing
Open drawing in full size
