BDŽ/Z
Series Eaos
51Series EaosLeased
BDŽ/Z
Volume
72 m³
Description
Podvozkové nákladní vozy řady Eaos májí velký úložný prostor a mají zesílenou skříň...
Technical parameters
- Length (m)
- 14,04
- Loading area (m²)
- 35,8
- Wagon weight (t)
- 25
- Axle load (t)
- 20
- Min. curve radius (m)
- 75
- Loading length (m)
- 12,8
- Loading width (m)
- 2,8
- Volume (m³)
- 72
- Max. wheelset diameter (mm)
- 920
- Brake
- KE-GP 16
- Brake shoe type
- GG P10 320
- Bogies
- Y25Cs
- International usability
- RIV
- Loading gauge
- G1
- Speed empty (km/h)
- 100
- Speed loaded (km/h)
- 100
Load table
| Track class | Mode | Max. weight (t) |
|---|---|---|
| A | S | 39,0 |
| B1 | S | 45,2 |
| B2 | S | 47,0 |
| C | S | 55,0 |

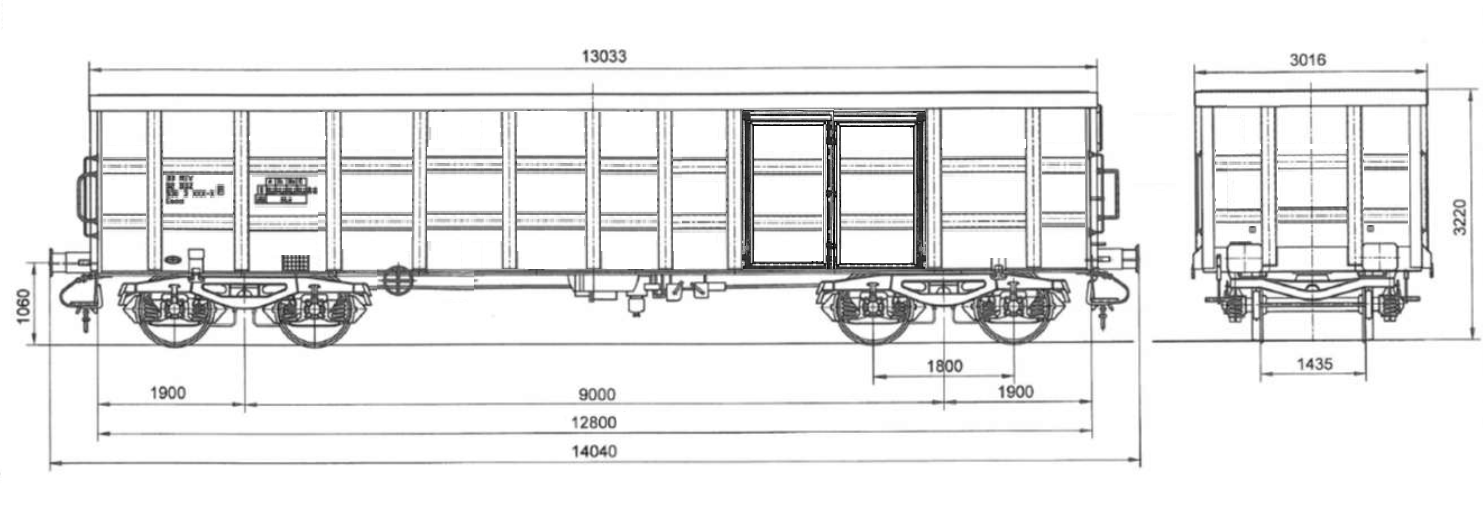

Type drawing
Open drawing in full size
Interested in this wagon?
Contact us for a non-binding rental inquiry or more information.
