RVG01.00
Series Eanos
18Series EanosLeased
RVG01.00
Volume
82,5 m³
Description

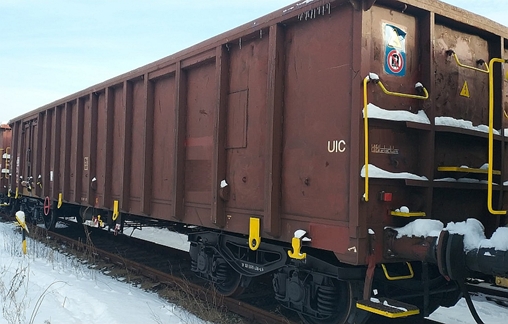

Open freight wagon with four axles. The Wagon body is a welded construction with 2000 mm high side walls, a larger cargo space, double doors on each side, and a steel floor. The wagons are equipped with two-axle Y25Lsd1 bogies, Knorr brakes with a 16" brake cylinder, and a manual "G-P" brake changeover device. They are suitable for the transport of a wide variety of goods, both in bulk—coal, ore, stone, and in pieces. The wagons are fully compatible with the trans-European network.
Technical parameters
- Length (m)
- 15,74
- Loading area (m²)
- 39,4
- Wagon weight (t)
- 24
- Axle load (t)
- 22,5
- Loading length (m)
- 14,5
- Loading width (m)
- 2,73
- Volume (m³)
- 82,5
- Max. wheelset diameter (mm)
- 920
- Brake
- KE-GP 16
- Brake shoe type
- GG/LL
- Bogies
- Y25 Lsd1
- International usability
- RIV
- Loading gauge
- G1
- Speed empty (km/h)
- 100
- Speed loaded (km/h)
- 100
Load table
| Track class | Mode | Max. weight (t) |
|---|---|---|
| A | S | 39,6 |
| B | S | 47,6 |
| C | S | 55,6 |
| D | S | 65,6 |
Load distribution
| Type | Support length (m) | Distributed load limit (t) | Two-support limit (t) |
|---|---|---|---|
| a-a | 3 | 23 | 26 |
| b-b | 5 | 27 | 30 |
| c-c | 10,7 | 39 | 55,6 |
Type drawing
Open drawing in full size
